Summit Doppler Vantage ABI - One Touch ABI Screening

Summit Doppler Vantage ABI – Simple One-touch ABI Screening

The Vantage ABI delivers rapid ABI screening within minutes, aiding in the early detection of Peripheral Arterial Disease. This system performs single-level exams using Digital Fourier Oscillometry (DFO), developed in collaboration with Cleveland Clinic Researchers to create a clinically valid DFO algorithm

Features

• Speedy throughput with large display and intuitive touchscreen navigation
• Convenient USB drive for data storage, transfer, and EMR interface

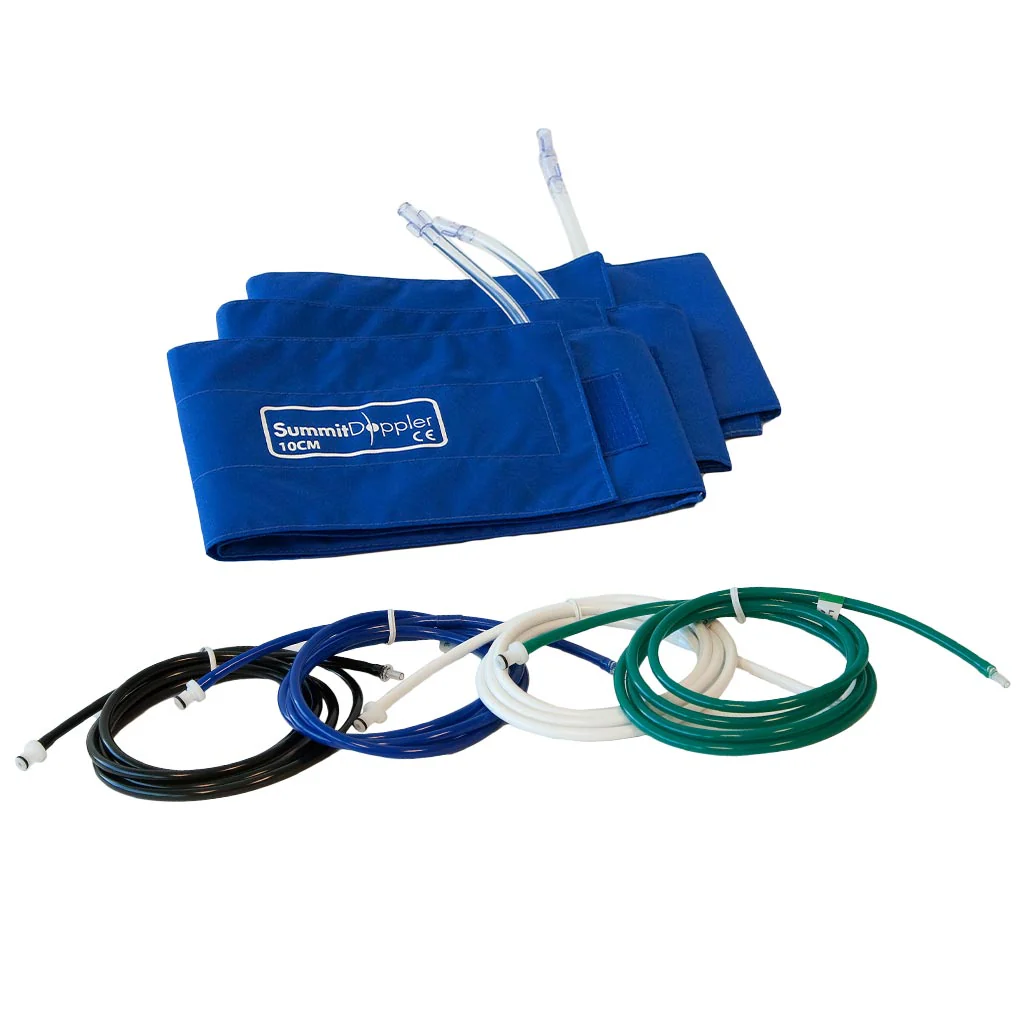

• Blood pressure cuffs for obtaining pressures and ankle waveforms

VANABI – Package 1: One-touch, three-minute ABI examinations with USB data storage and cuffs

VANMAX – Package 2: One-touch, three-minute ABI examinations with USB data storage and 4 cuffs, plus built-in printer, basket, and durable stand.

Specifications

• Main Unit Dimensions: 6.4 in x 11 in x 7.3 in
• Main Unit Weight: 4.6 lbs
• Mounting: Self-supported (rubber feet) or stand mounted (optional)
• Portability: Built-in carry handle
• Cuff Pressure Range: 0 to 280 mmHg
• Pressure Gauge Accuracy: +/-3 mmHg 0-200 mmHg, +/-2%>200 mmHg
• Deflation Rate: 2.5 mmHg/second nominal
• Inflation Pressure: 180 mmHg (default), 280 mmHg (User selected)
• Deflation Pressure: 60 mmHg (default), 35 mmHg (User selected)
• Pulse Rate Range: 43 to 120 BPM
• ABI Determination Time: 3 Min
• Determination: Pulse volume oscillometry
• Waveform Type: Pneumatic plethysmography
• Patient Connections: 4 vascular cuffs, 6 ft. hose length
• Classification: Class A
• Hose/Cable Length: 6 ft
